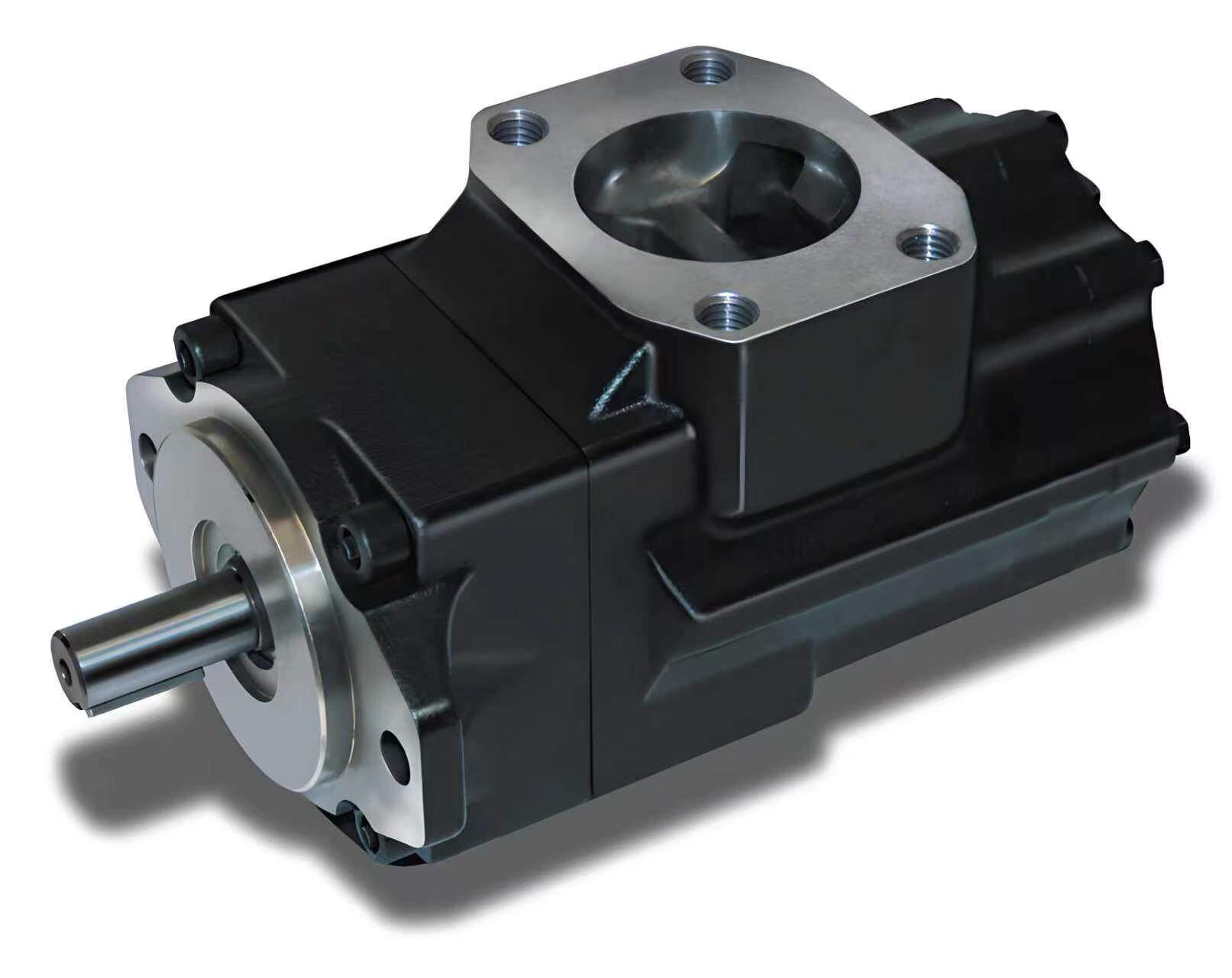

Vane Pump
1500BAR High-pressure / High-strength material / Special heat treatment / Multi-layer steel wire winding / Self-tightening seal / Precision forging / 100% inspection / Quick connect/disconnect / Long-life design
Product Overview
Vane pumps are the primary power source for hydraulic systems, transporting hydraulic fluid through volume changes between rotor vanes and the stator. They are available in fixed-displacement and variable-displacement series. These pumps feature low pulsation, quiet operation, high volumetric efficiency, and stable output pressure. Equipped with a precision stator and wear-resistant vanes, they offer excellent contamination resistance, compact design, and easy installation and maintenance. Ideal for machine tools, injection molding machines, automation equipment, and hydraulic test benches. Available in multiple pressure and flow configurations, supporting brand replacement, selection matching, and technical services.
Key Features
Technical Specifications
| Parameter Item | Specification Value |
|---|---|
| Displacement range | 6 - 150 mL/r |
| Rated Pressure | ≤ 21 MPa |
| Speed range | 600 - 2500 rpm |
| Noise Level | ≤ 65 dB(A) |
| Volumetric efficiency | ≥ 92% |
| Medium Cleanliness | NAS 1638: 9 level |
