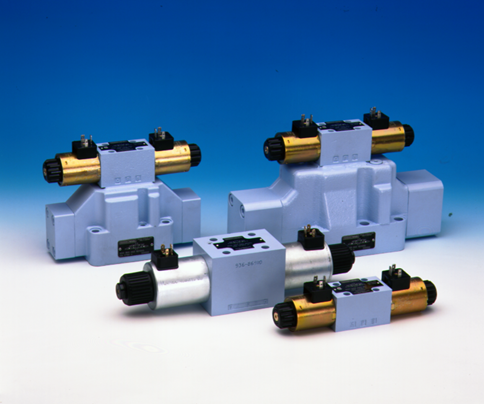

Directional Control Valve
1500BAR High-pressure / High-strength material / Special heat treatment / Multi-layer steel wire winding / Self-tightening seal / Precision forging / 100% inspection / Quick connect/disconnect / Long-life design
Product Overview
Directional control valves are core components in hydraulic systems, controlling the flow direction of hydraulic fluid via spool switching to start/stop and reverse actuators such as cylinders and motors. Our product line includes solenoid, electro-hydraulic, and manual directional control valves. Standard directional control valves offer reliable response and excellent sealing performance with multiple center position options. Electro-hydraulic and proportional directional control valves enable continuous adjustment of flow and direction for precise positioning. Available in cartridge, manifold, and subplate mounting configurations, these valves feature high impact resistance and contamination tolerance. With comprehensive specifications, they suit machine tools, construction equipment, injection molding machines, hydraulic test benches, and other complete hydraulic systems. Custom selection and replacement solutions are available upon request.
Key Features
Technical Specifications
| Parameter Item | Specification Value |
|---|---|
| Nominal Bore | NG06 / NG10 / NG16 / NG25 |
| Rated Flow | 60 - 400 L/min |
| work stress | ≤ 35 MPa |
| Voltage Specifications | DC24V / AC20V |
| Switch Time | ≤ 30 ms |
| Protection Rating | IP65 |
