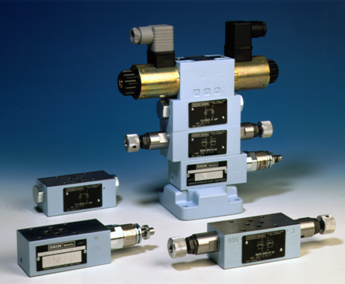

Flow Control Valve
1500BAR High-pressure / High-strength material / Special heat treatment / Multi-layer steel wire winding / Self-tightening seal / Precision forging / 100% inspection / Quick connect/disconnect / Long-life design
Product Overview
Hydraulic flow control valves regulate oil flow by adjusting the flow passage area, thereby controlling the speed of actuators such as cylinders and motors. Product lines include throttle valves, check throttle valves, speed control valves, check speed control valves, and proportional flow valves. Standard flow valves provide stable speed regulation for actuators while compensating for pressure fluctuations. ** Proportional flow valves enable stepless flow control via electrical signals, offering high precision and superior dynamic performance. ** Available in cartridge, stackable, and modular configurations, these compact units feature strong resistance to contamination and a comprehensive range of specifications. They are designed for complete hydraulic systems across machine tools, injection molding machinery, construction equipment, and hydraulic test benches, with options for custom selection and brand replacement.
Key Features
Technical Specifications
| Parameter Item | Specification Value |
|---|---|
| Nominal Bore | NG06 / NG10 / NG16 |
| Traffic Range | 5 - 200 L/min |
| work stress | ≤ 31.5 MPa |
| Repeatability | ≤ ±3% setpoint |
| Temperature Range | -20°C ~ +80°C |
| Medium Viscosity | 10 - 400 cSt |
