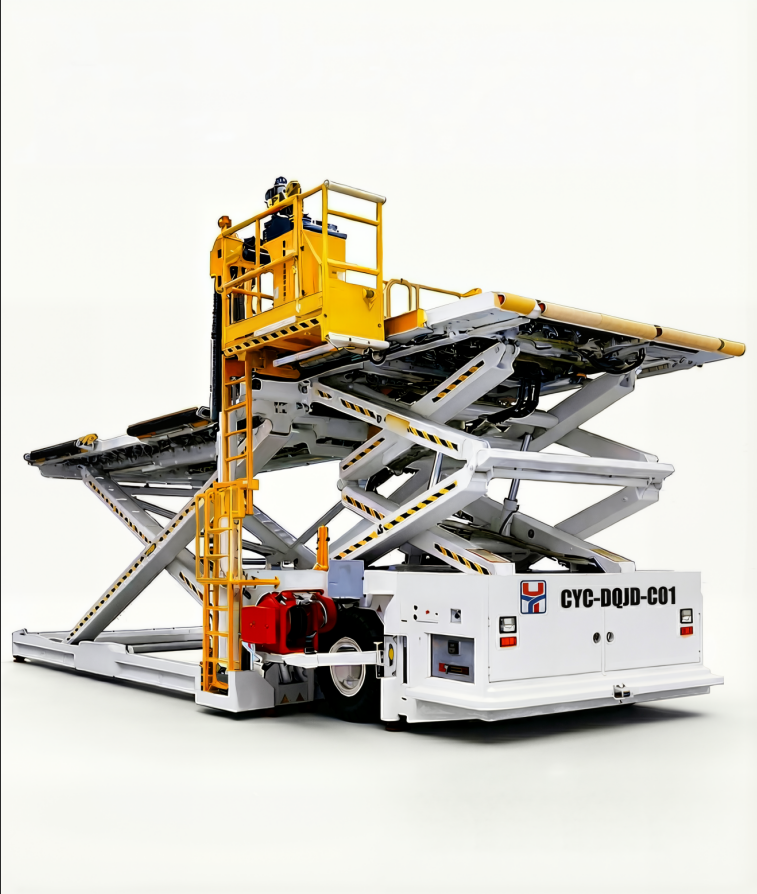

Aircraft cargo lift
1500BAR High-pressure / High-strength material / Special heat treatment / Multi-layer steel wire winding / Self-tightening seal / Precision forging / 100% inspection / Quick connect/disconnect / Long-life design
Product Overview
The aircraft cargo lift is a core series within Chuangyuecheng's GSE Equipment & Tools product line, widely used in industrial systems. Rigorously designed and tested, this series offers high reliability and excellent cost-performance ratio to meet diverse industrial application needs.
Key Features
The electro-hydraulic proportional control system achieves millimeter-level height adjustment, compatible with cargo door heights across various aircraft models.
Max capacity 10000kg, meets loading and unloading requirements for mainline aircraft pallets (B737/A320) and loose cargo.
Equipped with multiple safety interlocks including platform fall protection, overload protection, and emergency stop; meets civil aviation ground equipment safety standards.
Four-wheel steering system with a small turning radius for flexible operation in tight apron areas.
Comprehensive anti-corrosion and rust protection for all critical components, designed to withstand extreme environments including high temperatures, humidity, and salt fog.
The platform front is equipped with an automatic docking guide mechanism for fast and precise alignment with the aircraft cargo door.
Optimized hydraulic system and engine matching reduces operating noise to below 75 dB, meeting airport noise control requirements.
Built-in self-diagnostic system for real-time monitoring of key parameters such as hydraulic pressure, oil temperature, and battery level.
Technical Specifications
| Parameter Item | Specification Value |
|---|---|
| Maximum Capacity | 10000 kg |
| Height adjustment range | 1200-5500mm |
| Platform dimensions (L × W) | 3600×2400mm |
| Platform surface material | Anti-slip patterned steel plate |
| Lift speed | 0-15 m/min (stepless speed control) |
| Driving Speed | 0-25 km/h |
| System Operating Pressure | 21 MPa |
| Engine Power | 55kW (Diesel) |
| Total Weight | Approx. 6500 kg |
| Drive Type | Four-Wheel Drive |
| Steering Mode | Front and rear wheel steering |
| Minimum Turning Radius | ≤3500mm |
| Climbing Ability | ≤15% |
| Hydraulic tank capacity | 80L |
| Fuel tank capacity | 60L |
| Compatible Models | B737/A320/A330/B767 and other mainstream narrow-body/wide-body aircraft |
| Work Noise | ≤75dB(A) |
| Dimensions (L × W × H) | Approx. 5200×2200×2800mm |
Use Cases
Air Cargo Handling
For loading and unloading Unit Load Devices (ULDs) and loose cargo on airport aprons; compatible with the door heights of mainstream narrow-body and wide-body passenger aircraft.
Cargo Transfer
Fast cargo transfer between the freight terminal and aircraft to improve ground support efficiency.
Special Cargo Transport
Meets safety requirements for loading and unloading special cargo such as refrigerated goods, live animals, and hazardous materials.
Apron dispatch operations
Coordinate with airport ground support vehicle fleets to enable rapid turnaround and scheduling of flight cargo.
